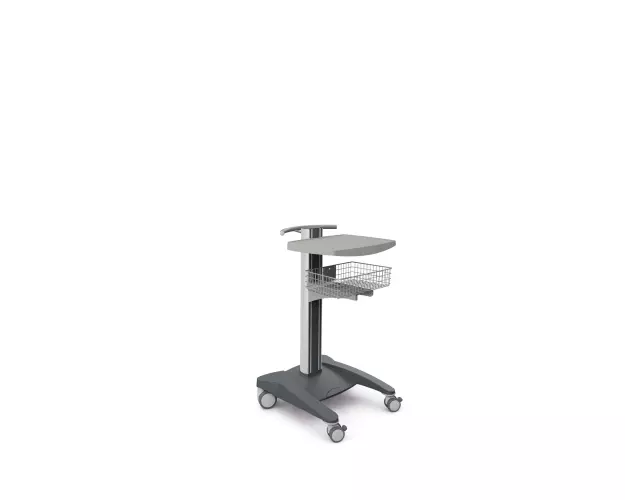

Haeberle fuego base trolley 1 with storage basket, ABS

The HAEBERLE fuego Base Cart 1 with Storage Basket offers a practical extension with its sliding storage basket, making it ideal for mobile workstations. With its ABS plastic shelf and sturdy aluminum support column, this cart is perfect for use in medical facilities, beauty studios, offices, and conference rooms.

The fuego series stands for premium quality and well-thought-out design. The ABS plastic shelf (500 x 390 mm) with molded edge and grip recess ensures a secure hold, while the sliding storage basket (418 x 268 x 100 mm) provides additional storage space for accessories.

Features & Benefits

✔ Single-column light-duty cart system – compact & highly flexible
✔ Durable aluminum support column (800 mm height) with integrated cable management
✔ ABS plastic shelf (500 x 390 mm) with molded edge & grip recess
✔ Sliding storage basket (418 x 268 x 100 mm), powder-coated in white aluminum (RAL 9006)
✔ Sturdy aluminum-cast base, powder-coated in basalt gray (RAL 7012)
✔ High-quality caster wheels (rear Ø 100 mm, front Ø 75 mm, 2 lockable) for excellent mobility & stability
✔ Ergonomic push handle for effortless maneuvering
✔ Integrated cable clip for organized cable management
✔ 2 wall bumpers to protect furniture and walls from damage
✔ Customizable design: Decorative strips available in gray or blue, other colors available on request

Applications

• Medical & Healthcare – Ideal as an ECG cart, infusion cart, or ergometry cart in medical offices & clinics
• Beauty & Wellness – Perfect as a beauty or cosmetic workstation for salons & mobile applications
• Office & Technology – Suitable as a laptop or presentation cart for offices & conference rooms

Technical Details

Dimensions (W x D x H): 545 x 572 x 987 mm

Materials:

• Support column: Anodized aluminum
• Base frame: Aluminum cast, powder-coated in basalt gray (RAL 7012)
• Shelf: ABS plastic, 500 x 390 mm, with molded edge & grip recess
• Basket: Metal, powder-coated in white aluminum (RAL 9006), sliding (Ref. 19268)
• Push handle: Steel tube, powder-coated in white aluminum (RAL 9006)
• Decorative strips: PVC in gray or blue (other colors available on request)
• Wheels: Polyamide housing, non-marking gray polyurethane tires
• Wall bumpers: Plastic

Load Capacity:

• Maximum total load: up to 60 kg
• ABS shelf: up to 15 kg
• Storage basket: up to 5 kg

Safety & Expansion Options

• Modular design: Additional shelves, drawers, or specialized mounts available
• Optional potential equalization pin (POAG) according to DIN 42801 for added electrical safety
• Pre-assembled delivery – ready for immediate use

HAEBERLE fuego Base Cart 1 with Storage Basket – ABS – the perfect solution for mobile workstations with extra storage space!
